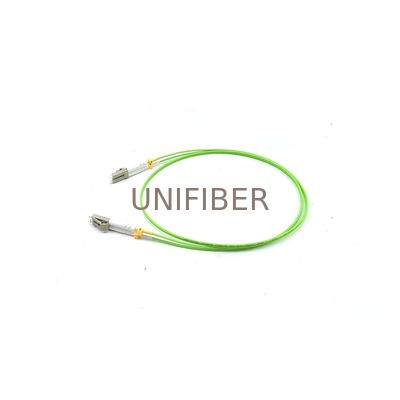

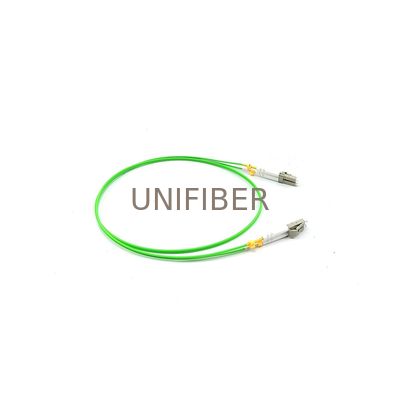

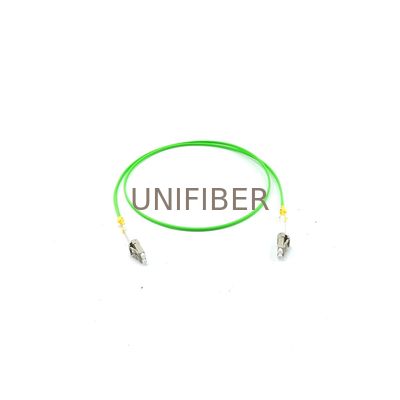

LC UPC Duplex to LC UPC Duplex Multimode (OM5) Fiber Patch Cable Lime Green 1M

Grote Afbeelding : LC UPC Duplex to LC UPC Duplex Multimode (OM5) Fiber Patch Cable Lime Green 1M

Productdetails:

Place of Origin:	CHINA
Merknaam:	Unifiber or OEM
Certificering:	ROHS
Model Number:	OM5 Fiber Patch Cable

Betalen & Verzenden Algemene voorwaarden:

Minimum Order Quantity:	10
Prijs:	Onderhandelbaar
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact

Gedetailleerde productomschrijving

Product:	OM5 Fiber Patch Cord	Connector:	LC UPC Duplex
Fiber Type:	Multimode (OM5)	Cable Diameter:	2.0mm
Jacket Material:	LSZH	Jacket Color:	Lime Green

This OM5 fiber patch cable meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. The bend insensitive fiber patch cable for multi-wavelengths transmission systems operating in the range of 850-953nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.

Features

Bend Insensitive Fiber & 7.5mm Min. Bend Radius

Precision Zirconia Ferrule Connectors Ensure Low Loss

Flame-Retardant Riser (OFNR) for Vertical and Floor-to-floor Installations

Color-Coded Cable Jacket for Easy Identification

A WBMMF Solution Supports at Least 4 Wavelengths

Pre-terminated Cable Allows for Implementing Plug & Play Solutions

Exceptional Performance in a Data Center, Telecommunication Networks, or an Enterprise Setting

Application

Data Centre
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network

Specification

Parameters	Multimode OM5 Duplex LC/PC to LC/PC Fiber Patch Cord
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.
